Cementerized Raised Access Flooring
Cementarized plate basses are the high-grade ones
developed by environment friendly material.
This kinds of plate bases have good bearing ,
waterproof, fireproof and anti-magnetic
capabilities, are the first choices as high-grade
computer room's floor base at home and abroad
|

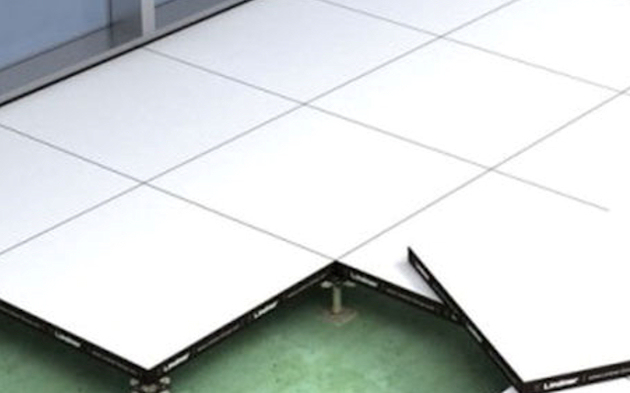

Ceramic Raised Access Flooring (Anti-Static)
Specifications Fire rating:A grade.
Cold-rolled steel plate.
Concavity of panels not exceed 0.5mm.
Cement infill steel panel with 10mm ceramic
finish 1.
Panel squareness:within ±0.25mm. 2.Panel
dimension.
|
![](images/services-datacenter-design2.jpg) |
|
![Design & Build Data Center](images/services-datacenter-design3.jpg) |
|
Full Steel Anti-rust Perforated Raised Floor
The structure of ventilation floor is similar with
that of anti-static full-steel raised floor but it
has hollow cavity without foam stuffing.
The upper and lower steel paltes and upper cover of
the floor are all punched with ventilation holes.
Matched with the full-steel raised floor, the
ventilation raised floor is used in the place where
ventilation is required under the floor, and the
ventilation rate of the floor is 17%-50%
|

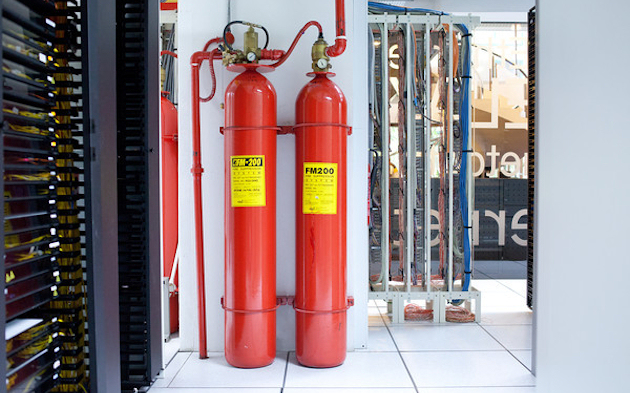

Fire Suppression System
Gas suppression system shall be the means of
protection for the DC.
The Gas Storage Cylinders shall be located
within a dedicated area located adjacent to
the protected room.
The activation of the Gas Suppression System
shall be controlled by smoke detector
activation located in the protected areas.
The option of providing a 'change over
switch' to enable the automatic or manual
activation of the system shall be provided.
The fire protection system shall be designed
to comply with “NFPA” standards & Local
Codes and Regulations.
Existing Building Water Sprinkler Nozzle in
the Data Centre shall be “depressurized” and
removed “IF ANY”. |
![](images/services-datacenter-design4.jpg) |
|
![Design & Build Data Center](images/services-datacenter-design5.jpg) |
|

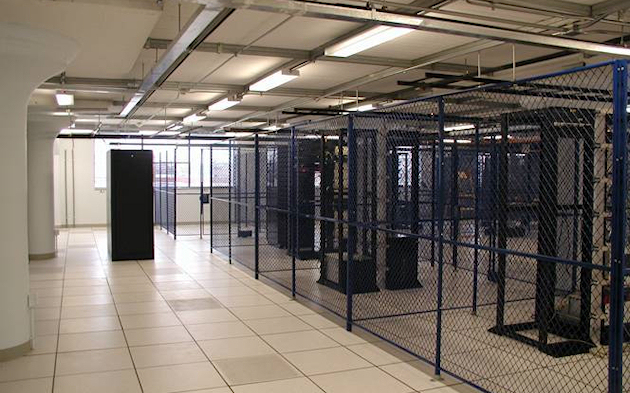

Fire Rated Partitioning
|

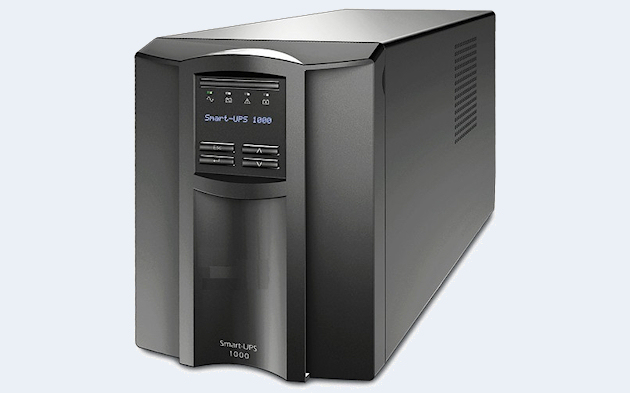

Uninterruptible Power Supply (UPS)
|
![](images/services-datacenter-design6.jpg) |
|
![Design & Build Data Center](images/services-datacenter-design7.jpg) |
|

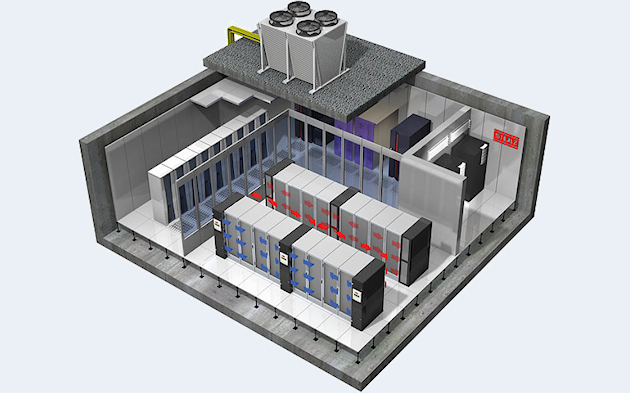

Cooling System
|

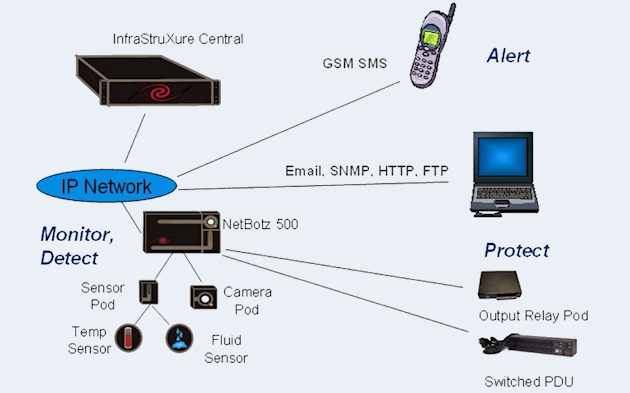

Environment Monitoring System
|
![](images/services-datacenter-design8.jpg) |
|
![Design & Build Data Center](images/services-datacenter-design9.jpg) |
|

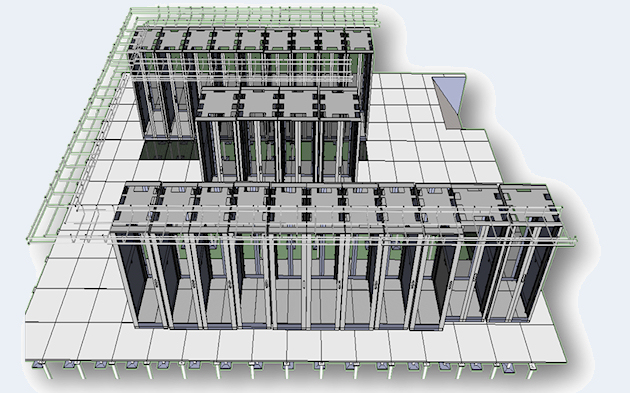

Raised Flooring, Racking, and Cable management
design, 3D drawing and feasibility Study
Cable Management on the shown diagram are Cable
Basket Concept that provide a clean and easy cable
management solution for Data Center.
A 3D flooring is design upon proper and accurate
flooring system to be install in a Data Center to
avoid wrong positioning of Racking & other Data
Center Equipment.
A proper Racking system plays important state in
Data Center is the proper positioning, as the
diagram shown a clean and right location is
coordinated with the Raised Flooring & Cable
Management System. |
|
|
